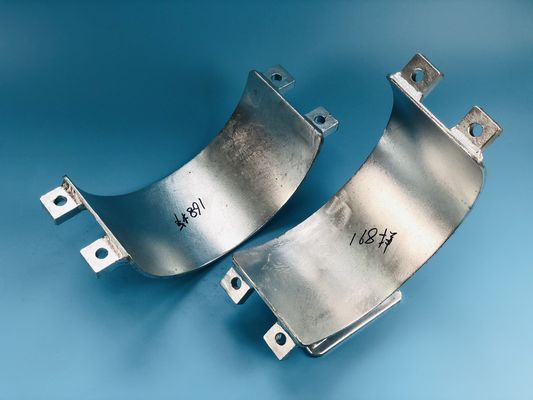

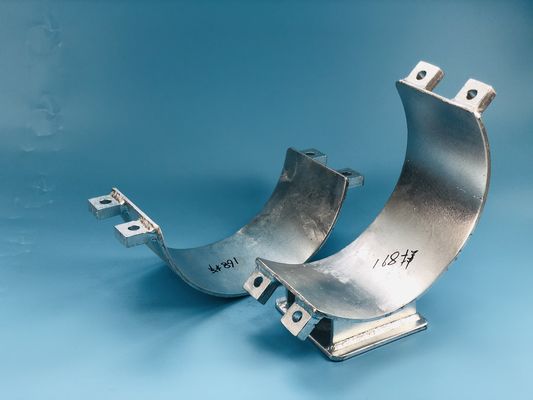

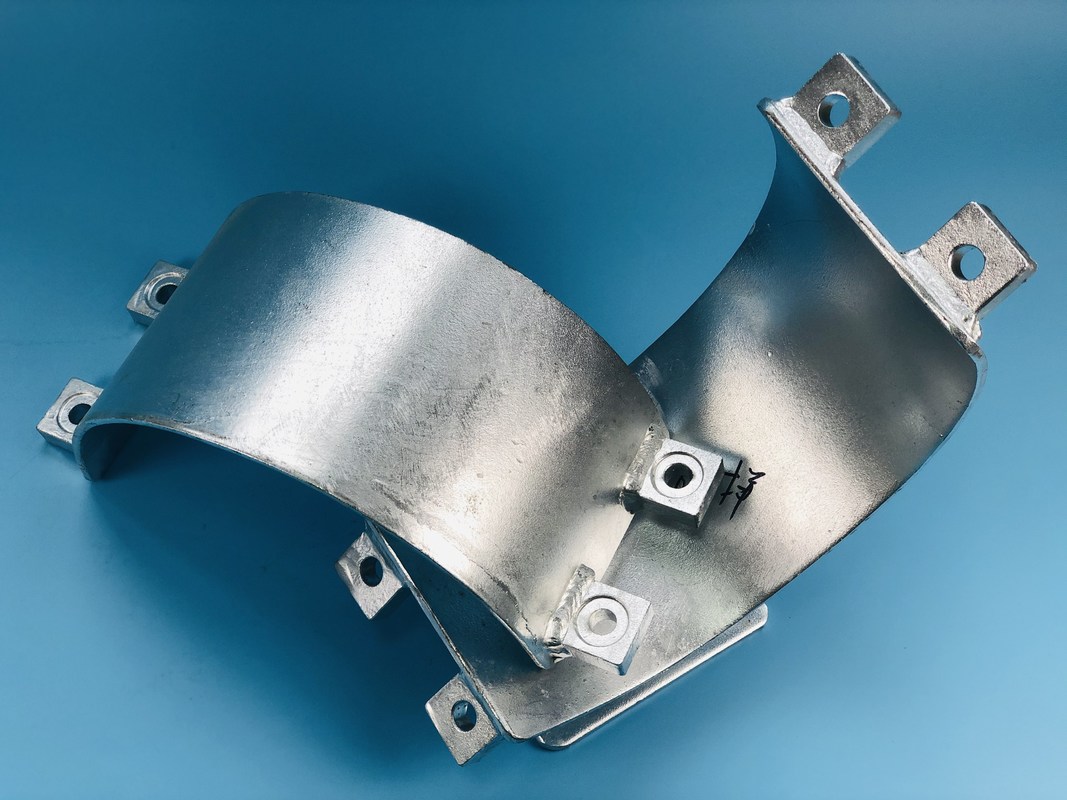

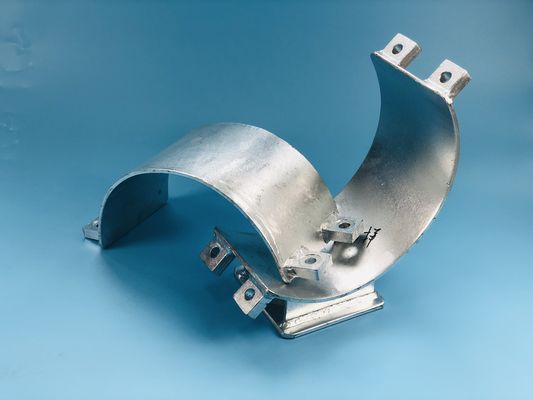

Stainless Steel 15mm Diameter Pipe Support Clamp With Welded Ear Plates
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Minimum Order Quantity | 10 Sets |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Pipe Clamp With Welded Ear Plates | Material | Stainless Steel |
|---|---|---|---|
| PLATE THICKNESS | 4-12mm | GALVANIZED LAYER THICKNESS | 55μm |
| APPLICABLE PIPE DIAMETER | 15-350mm | ||
| Highlight | Diameter 15mm Stainless Steel Pipe Clamps,15mm Diameter Pipe Support Clamp,Pipe Clamp With Welded Ear Plates |
||
Product Description
Stainless Steel 15mm Diameter Pipe Support Clamp With Welded Ear Plates
Pipe clamp with welded ear plates for sliding pipe support
The Sliding Pipe Support System is designed for supporting insulated pipes and equipment. A complete insulated pipe support system consists of insulated pipe supports and cold insulation materials, with high-density polyisocyanurate (HDPIR) being the most critical component.
The Sliding Pipe Support System is designed for supporting insulated pipes and equipment. A complete insulated pipe support system consists of insulated pipe supports and cold insulation materials, with high-density polyisocyanurate (HDPIR) being the most critical component.
Available System Variations
- Sliding Pipe support system
- Guide pipe support system (including guide support for vertical pipe)
- Limit/fixing pipe support system
- Bearer supporting bracket system
General Structure of Insulated Pipe Support System (Sliding System)
- Pipe support base
- Rubber plate
- Metal protective layer
- Vapor barrier
- HDPIR inner layer
- HDPIR outer layer
- Metal pipe clamp
- Bolts
- Disc spring
- Nut
