DN200x180 Pipe Insulation Supports HDPIR Cold Insulation Pipe Sliding Support
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Model Number | DN200 ( 8 inch) *180 |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | HDPIR Cold Insulation Sliding Pipe Support | Feature | Durable |
|---|---|---|---|
| Cold Insulation Material | HDPIR | Pipe OD | 21.3 Mm - 965.20 Mm |
| Application | LPG, LNG,Petrochemical Plant | Insulation Thickness | 25mm - 250mm |
| Highlight | HDPIR Cold Insulation Sliding Pipe Support,DN200x180 Pipe Insulation Supports,Cold Insulation Pipe Sliding Support |
||
Product Description

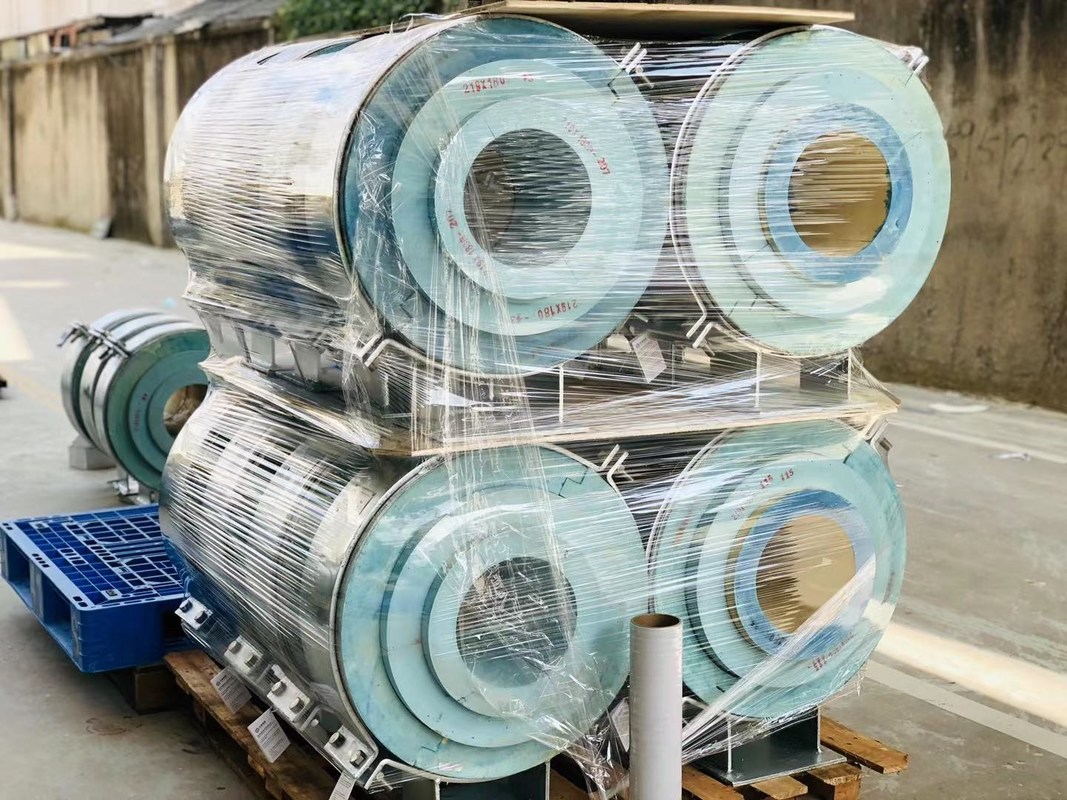

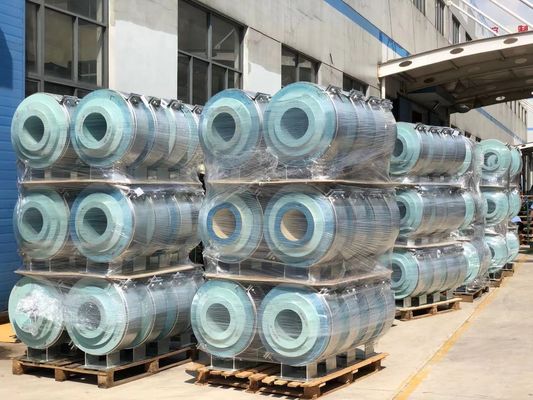

DN200x180 Pipe Insulation Supports HDPIR Cold Insulation Pipe Sliding Support
HDPIR Cold Insulation Sliding Pipe Support, Stable performance, DN200 (8 inch) *180
The sliding pipe support consists of a steel tube support mounted on the pipe and the supporting structure below. It bears the vertical load of the pipe while allowing horizontal sliding movement. Available in various cross-section configurations including curved groove type, T-type, and curved plate type.
Product Features
- Designed for low temperature pipes conveying refrigerant in petrochemical, refrigeration, and shipbuilding industries
- Functions as cold insulation structure for supporting parts of brackets and hangers
- Long service life with high compressive strength and stability
- Excellent thermal insulation properties
- Improves stress distribution and force transmission in pipeline systems
- Ensures safe operation and extends service life of piping systems
Technical Specifications
Pipe diameter: 219mm | Insulation thickness: 180mm
Base width: 280mm | Iron piece length: 150mm
Ear plate width: 50mm | Bottom elevation: 100mm
HDPIR Insulation Block Properties
| Property | Value |
|---|---|
| Average Density | 224kg/m³ |
| Thermal Conductivity (20℃) | ≤0.040W/m.K |
| Compressive Strength (normal temperature) | ≥4.0 MPa |
| Water Absorption | ≤2.0% |
| Closed Cell Content | >95% |
| Linear Expansion Coefficient (-165-20℃) | ≤65 x 10⁻⁶ 1/K |
| Application Temperature | -306℃ |
