250K Pipeline Supports HD PIR Natural Gas Pipe Supports 100mm Insulation Thickness
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Sets |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | HDPIR Pipe Support With Two Vertical Plates | DENSITY | 160-550 K |
|---|---|---|---|
| COLOR | White/red/yellow/green | SERVICE TEMP. | -196～+120℃ |
| THERMAL CONDUCTIVITY (+20℃) | ≤0.035-≤0.085 W/(m·K) | THERMAL CONDUCTIVITY (-196℃) | ≤0.0232 W/(m·K) |
| COMPRESSIVE STRENGTH | 2-14 MPa | CLOSED CELL RATIO | ≥95% |
| Highlight | 250K Pipeline Supports,HD PIR Natural Gas Pipe Supports,100mm Insulation Thickness Pipeline Supports |
||
Product Description
250K Pipeline Supports HD PIR Natural Gas Pipe Supports - 100mm Insulation Thickness
The reinforced sliding pipe support features a wedge-shaped interface design that provides superior cooling performance compared to straight-slit interfaces.
| Pipe Diameter | Insulation Thickness | Length |
|---|---|---|
| 457mm | 100mm | 450mm |
Designed for pipes with 457mm diameter, this support block has a density of 250Kg/m. Field applications demonstrate exceptional strength grade and outstanding cooling performance.
- Reinforced structure with 6 reinforcing bars at the clip lug plate
- Increases overall pipe support strength by 3 grades
- Hot dip galvanized bolts for superior corrosion resistance
- Double-layer cooling structure provides significantly better cooling than single-layer designs

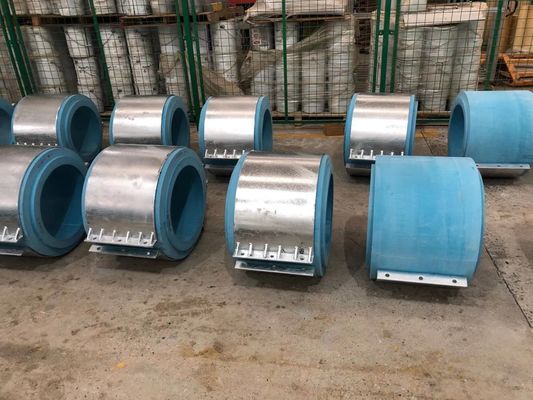

Custom HDPIR colors available to meet specific project requirements. Shown here in customer-selected blue color option.
