160K Double Clamps Sliding Pipe Support Industrial Pipe Hangers With Two Vertical Plates

Brand Name:	Kaff Rees
MOQ:	20 Sets
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

HDPIR Pipe Support With Two Vertical Plates

DENSITY:

160-550 K

COLOR:

White/red/yellow/green

SERVICE TEMP.:

-196～+120℃

THERMAL CONDUCTIVITY (+20℃):

≤0.035-≤0.085 W/(m·K)

THERMAL CONDUCTIVITY (-196℃):

≤0.0232 W/(m·K)

COMPRESSIVE STRENGTH:

2-14 MPa

CLOSED CELL RATIO:

≥95%

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Double Clamps Sliding Pipe Support

160K Industrial Pipe Hangers

Pipe Hangers With Two Vertical Plates

Product Description

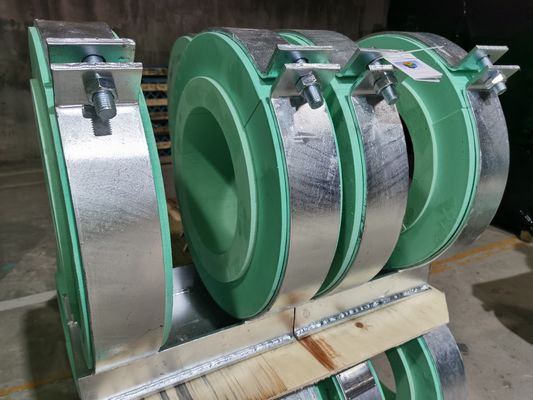

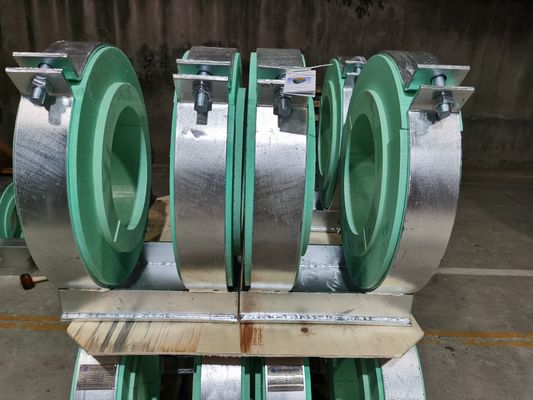

160K Double Clamps Sliding Pipe Support Industrial Pipe Hangers With Two Vertical Plates

The double-clamp sliding pipe support is designed for chemical energy pipeline installation and connection. It is specifically mounted on the support seat beneath cooling pipes, utilizing double bolt tube clamps for secure cooling block attachment.

This system prevents cooling capacity transfer to structural beams through the support. The cooling block acts as a thermal barrier, providing insulation, vibration reduction, and heat expansion buffering to eliminate cold bridge formation.

Technical Specifications

Material: PIR (Polyisocyanurate)

Parameter	Available Sizes
Inner Diameter (mm)	26.7, 33.4, 48.3, 60.3, 88.9, 114.3, 168.3, 219.1, 273, 323.9, 355, 406.4, 457.2, 508, 609.6
Thickness (mm)	30, 40, 50, 60, 70, 80(40+40), 90(40+50), 100(50+50), 120(60+60), 150(70+80), 180(60+60+60), 200(60+70+70)
Length (mm)	100, 150, 200, 250, 300, 350, 400, 450, 500

Cooling block arcs are available in standard configurations (45°, 60°, 90°, 120°, 180°) or can be custom manufactured to meet specific project requirements.
