Industrial HD PIR Limit Stop Pipe Support Fire Resistance For Petrochemical Plant

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Limit Stop Pipe Support

Insulation Thicknesses:

0.98 In - 9.84 In

Feature:

Excellent Fire Resistance

Pipe OD:

0.84 In - 38 In

Cold Insulation Material:

High Density Polyisocyanurate

Application:

Liquefied Gas Plant

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Pipe Support for Petrochemical Plant

HD PIR Limit Stop Pipe Support

Limit Stop Pipe Support Fire Resistance

Product Description

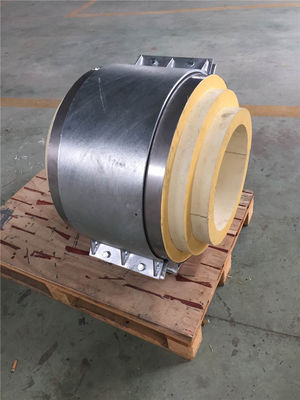

Industrial HD PIR Limit Stop Pipe Support with Fire Resistance

Our limit pipe support system completely isolates pipes from external structures and includes a sealed vapor barrier with line stop functionality to prevent issues at support locations.

System Composition

The complete insulated pipe support system consists of:

Insulated pipe supports
High density polyisocyanurate (HDPIR) cold insulation material (primary component)

Optional auxiliary materials include:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut assemblies
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

Applications

Designed for pipe and equipment support in:

Petrochemical plants
Liquefied gas plants
Refrigeration warehouses
Central air conditioning systems

Packaging & Storage

All components are pre-assembled in our workshop. Finished products are wrapped in anti-UV polyethylene film and securely packed in wooden cases.

HDPIR Material Properties

High Density Polyisocyanurate (HDPIR) is a foaming polymer combining properties of plastic, rubber, and cork. Composed of millions of uniform sealed cells, it offers superior performance with:

Low density
Low thermal conductivity
Minimal water absorption
Superior performance compared to timber

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Process
