High Safety Limit Stop Pipe Support , Insulated Pipe Hangers For Liquefied Gas Plant

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Insulated Pipe Hangers

Application:

Liquefied Gas Plant

Feature:

High Safety

Insulation Thicknesses:

0.98 In - 9.84 In

Pipe OD:

0.84 In - 38 In

Cold Insulation Material:

High Density Polyisocyanurate

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

pipe support systems

pipe insulation shields

Product Description

High Safety Limit Stop Pipe Support for Liquefied Gas Plants

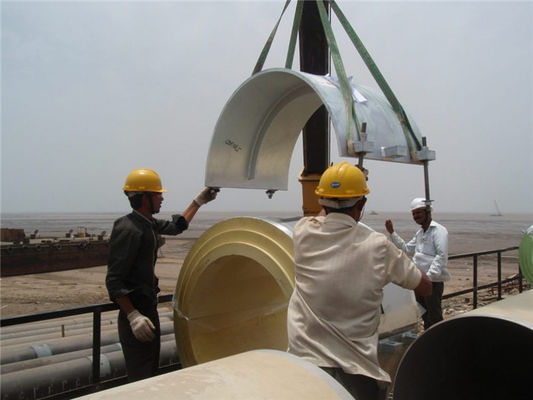

Our limit pipe support system enables convenient installation on existing pipelines with all components in place. This solution improves project schedules, enhances safety with waist-high working conditions, reduces scaffolding needs, and lowers overall construction costs.

System Composition

The complete insulated pipe support system consists of:

Insulated pipe supports
Cold insulation materials (primary component: High Density Polyisocyanurate - HDPIR)

Optional auxiliary materials include damp proof layers, metal protective layers, rubber plates, pipe clamps, fasteners, insulation washers, PTFE sliding pairs, and steam insulation resistance - all customizable to meet specific design requirements and ensure system reliability.

Applications

Designed for pipe and equipment support in:

Petrochemical plants
Liquefied gas facilities
Refrigeration warehouses
Central air conditioning systems

Packaging & Storage

Components are pre-assembled in our workshop. Finished products are wrapped in UV-resistant polyethylene film and securely packed in wooden cases.

HDPIR Material Properties

High Density Polyisocyanurate (HDPIR) is a foaming polymer combining characteristics of plastic, rubber, and cork. Formulated from isocyanate, polyether, and specialized additives, it forms a cellular structure with millions of uniform sealed cells, offering superior performance to traditional materials.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306
