Strong Structure Pipe Insulation Supports Heat Insulation Limit Stop Pipe Support

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Pipe Insulation Supports

Feature:

Strong Structure

Insulation Thicknesses:

0.98 In - 9.84 In

Pipe OD:

0.84 In - 38 In

Cold Insulation Material:

High Density Polyisocyanurate

Application:

Liquefied Gas Plant

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Heat Insulation Limit Stop Pipe Support

Strong Structure Pipe Insulation Supports

Product Description

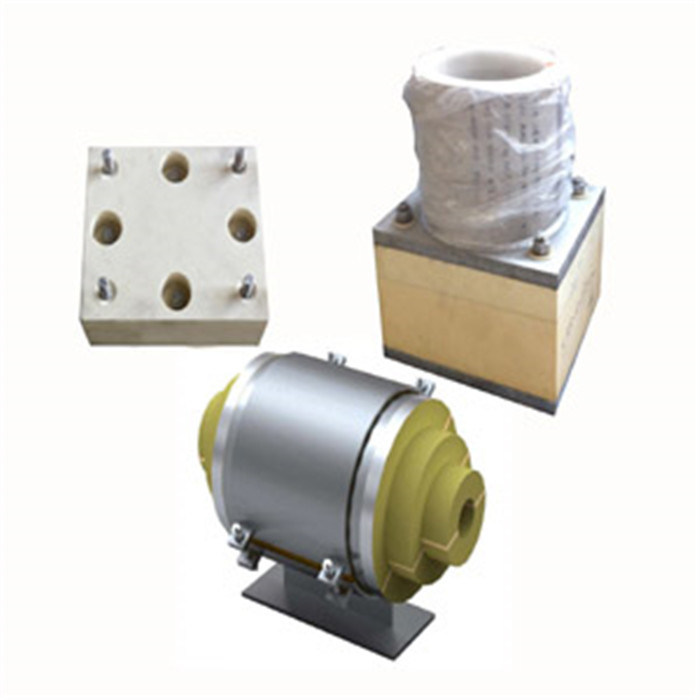

Strong Structure Pipe Insulation Supports Heat Insulation Limit Stop Pipe Support

The limit pipe support system is designed for bearing and heat insulation of pipes and equipment in petrochemical plants, liquefied gas plants, refrigeration warehouses, and central air conditioning systems.

This insulated pipe support system carries various loads from piping systems while serving as part of the cold insulation for pipelines.

System Composition

A complete insulated pipe support system consists of:

Insulated pipe supports
Cold insulation materials (primarily High Density Polyisocyanurate - HDPIR)

Optional Auxiliary Materials:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut set
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

Packing and Storage

All components are pre-assembled in workshop. Finished products are wrapped in anti-ultraviolet polythene film and packed in wooden cases for protection.

HDPIR Material Properties

High Density Polyisocyanurate (HDPIR) is a foaming polymer combining properties of plastic, rubber, and cork. Composed of millions of tiny sealed cells, it offers:

Low density
Low thermal conductivity
Low water absorption
Superior performance compared to timber

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306
