Customized Size Calcium Silicate Pipe Shields Tube Supports Flammability Resistance
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Calcium Silicate Pipe Shields | Feature | Vertical Pipe Support |
|---|---|---|---|
| Insulation Thicknesses | 0.98 In - 9.84 In | Pipe OD | 0.84 In - 38 In |
| Cold Insulation Material | High Density Polyisocyanurate | Application | Liquefied Gas Plant |
| Highlight | Customized Size Calcium Silicate Pipe Shields,Customized Calcium Silicate Tube Supports,Tube Supports Flammability Resistance |
||
Product Description

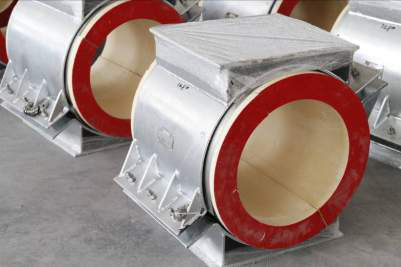

Customized Size Calcium Silicate Pipe Shields Tube Supports with Flammability Resistance
Compositions
A complete limit pipe support system consists of insulated pipe supports and cold insulation materials. The high-density polyisocyanurate (HDPIR) serves as the primary cold insulation material in this system.
The insulated pipe support system may include these auxiliary components as needed:
- Damp proof layer
- Metal protective layer
- Rubber plate
- Metal pipe clamp
- Bolt and nut assembly
- Butterfly spring
- Cold insulation washer
- Polytetrafluoroethylene sliding pair
- Steam insulation resistance
This system supports insulated pipes and equipment while bearing various loads from the piping system, serving as an integral part of pipeline cold insulation.
Applications
Ideal for pipe and equipment support in:
- Petrochemical plants
- Liquefied gas facilities
- Refrigeration warehouses
- Central air conditioning systems
Packing and Storage

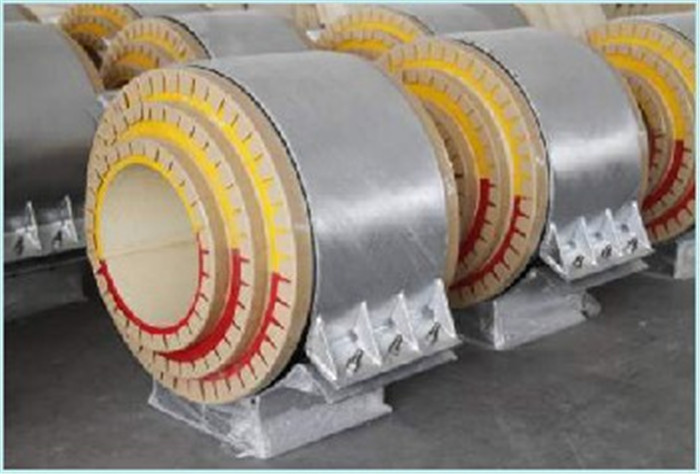

All components are pre-assembled in our workshop. Finished products are wrapped in anti-UV polyethylene film and securely packed in wooden cases.
HDPIR Material Properties
High-density polyisocyanurate (HDPIR) is a foaming polymer combining characteristics of plastic, rubber, and cork. Formulated from isocyanate, polyether, foaming agents, catalysts, and flame retardants, it features millions of uniform sealed cells that provide superior insulation properties.
| Physical Property | Unit | Technical Indicator |
|---|---|---|
| Avg. Density | kg/m3 | 160 | 224 | 320 | 400 | 500 | 550 |
| Thermal Conductivity (20°C) | W/m.K | ≤0.032 | ≤0.040 | ≤0.050 | ≤0.058 | ≤0.075 | ≤0.085 |
| Compressive Strength (normal temperature) | MPa | ≥2.0 | ≥4.0 | ≥7.0 | ≥12.0 | ≥18.0 | ≥22.0 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Closed Cell Content | % | >95 |
| Linear Expansion Coefficient (-165-20°C) | 1/K | ≤65 x 10-6 |
| Application Temperature | °C | -306 |
