Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support

  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
  • Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
Place of Origin Changzhou, Jiangsu,China
Brand Name Kaff Rees
Minimum Order Quantity 10 Sets
Price Negotiable
Packaging Details Carton packaging/Wooden case packaging/according to the requirements
Delivery Time Negotiable
Payment Terms EXW/FOB/CIF
Supply Ability According to products
Product Details
Name Pipe Clamp With Bending-type Ear Plates Material Galvanized Carbon Steel
Plate Thickness 4-12mm Galvanized Layer Thickness 55μm
Applicable Pipe Diameter 15-350
Highlight

Single Outer Retaining Ring Pipe Clamps

,

Fixed Pipe Support Pipe Clamps

,

Galvanised Clamp Fittings For Pipe Support
Leave a Message
Product Description
Single Outer Retaining Ring Galvanised Pipe Clamp Fittings For Pipe Support
Pipe clamp with bending-type ear plates for fixed pipe support, featuring one outer retaining ring. This fixed pipe support system is primarily designed for insulated pipes and equipment, capable of bearing various loads from piping systems while serving as part of the pipeline's cold insulation.
Compositions
A complete insulated pipe support system consists of insulated pipe supports and cold insulation materials. The primary cold insulation material is high-density polyisocyanurate (HDPIR).
The system can be enhanced with these optional auxiliary materials:
  • Damp proof layer
  • Metal protective layer
  • Rubber plate
  • Metal pipe clamp
  • Bolt and nut set
  • Butterfly spring
  • Cold insulation washer
  • Polytetrafluoroethylene sliding pair
  • Steam insulation resistance
Galvanised pipe clamp fittings installation example

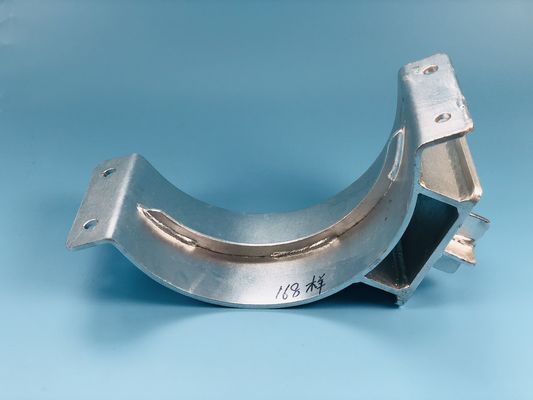

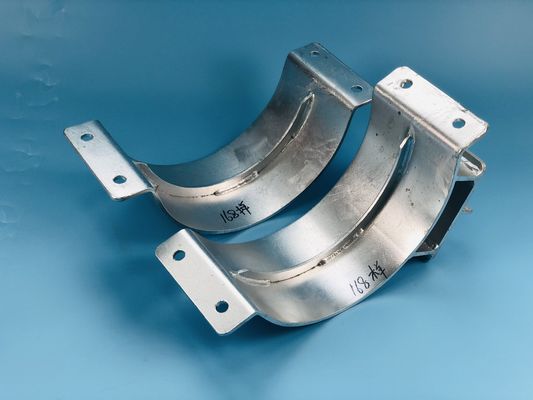

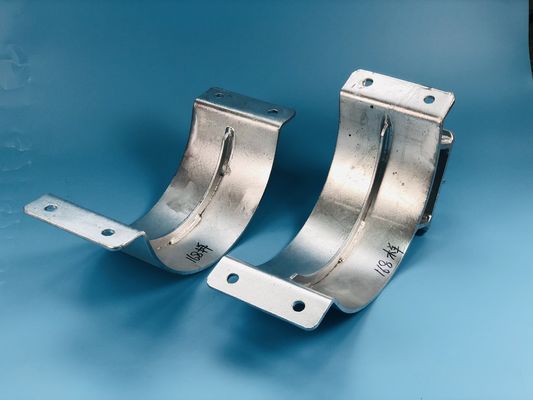

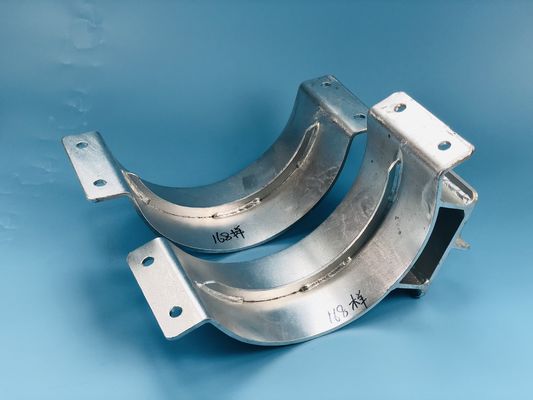

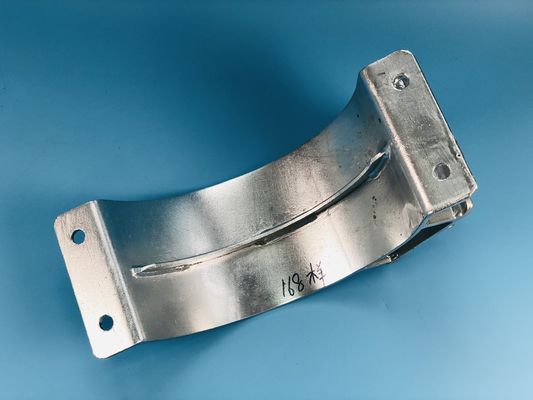

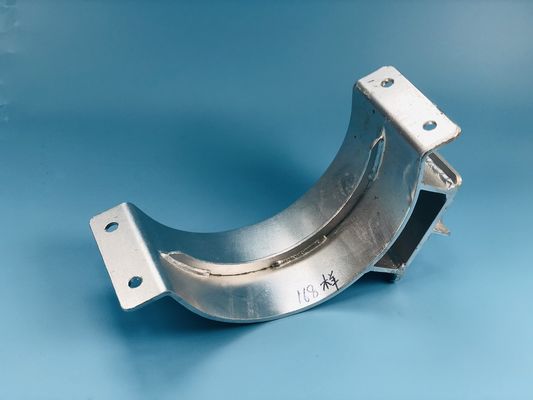

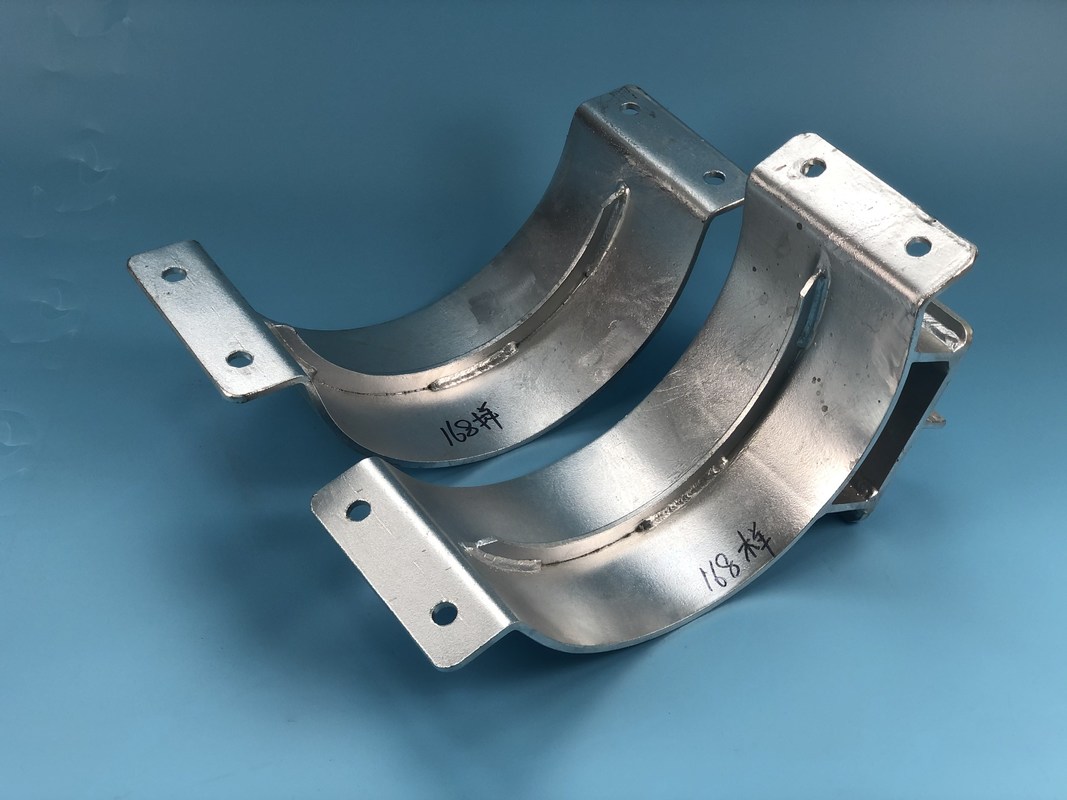

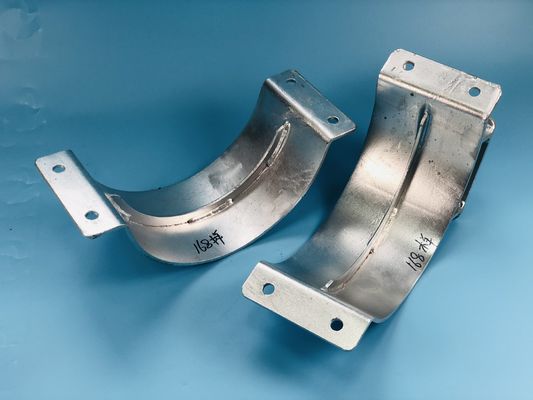

Close-up view of pipe clamp retaining ring
Application
Designed for load-bearing and thermal insulation in piping systems for petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.
Packing and Storage
All components are pre-assembled in the workshop. Finished products are wrapped in anti-UV polyethylene film and securely packed in wooden cases for protection during transport and storage.
