OD 0.84 Inch Pre Insulated Pipe Supports For Liquefied Gas Plant Custom Size
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Insulated Fixed Pipe Supports | Cold Insulation Material | High Density Polyisocyanurate |
|---|---|---|---|
| Insulation Thicknesses | 0.98 In - 9.84 In | Pipe OD | 0.84 In - 38 In |
| Application | Liquefied Gas Plant | SERVICE TEMP. | -196～+120℃ |
| Highlight | OD 0.84 Inch Pre Insulated Pipe Supports,Gas Plant Pre Insulated Pipe Supports,Custom Size Fixed Pipe Support |
||
Product Description

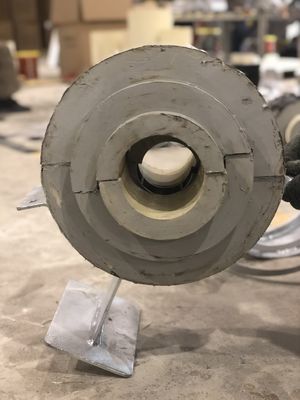

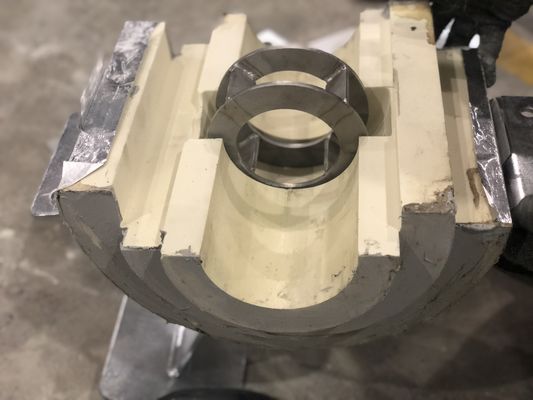

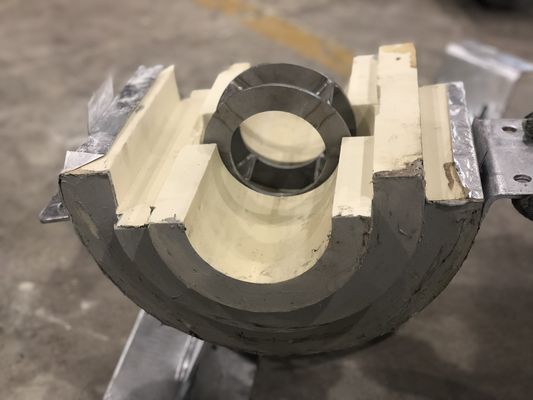

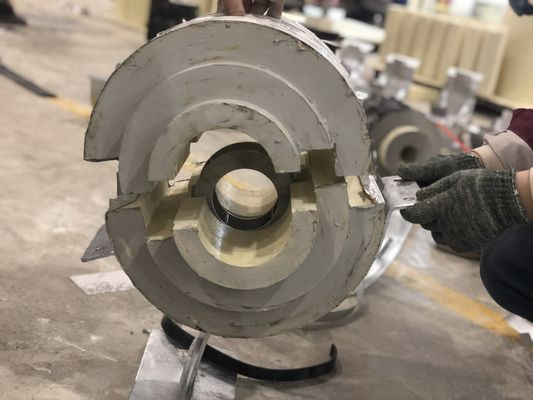

OD 0.84 Inch Pre Insulated Pipe Supports For Liquefied Gas Plant Custom Size
Eco Friendly Pre Insulated Pipe Supports, Insulated fixed pipe support
Insulated pipe supports provide an immediate thermal break and eliminate "radiator fin" heat loss or gain, depending on the system's service temperature. These pre-insulated supports effectively maintain desired pipe temperatures by either retaining heat or preventing heat transfer.
Types
- Sliding Pipe support system
- Guide pipe support system (including guide support for vertical pipe)
- Limit pipe support system
- Fixing pipe support system Bearer
- Supporting bracket system
Compositions
The complete insulated pipe support system consists of insulated pipe supports and cold insulation materials, with high density polyisocyanurate (HDPIR) as the primary insulation component.
Additional auxiliary materials can be included based on requirements:
- Damp proof layer
- Metal protective layer
- Rubber plate
- Metal pipe clamp
- Bolt and nut
- Butterfly spring
- Cold insulation washer
- Polytetrafluoroethylene sliding pair
- Steam insulation resistance
Application
Primarily used for bearing and heat insulation of pipes and equipment in petrochemical plants, liquefied gas plants, refrigeration warehouses, and central air conditioning systems.
Packing and Storage

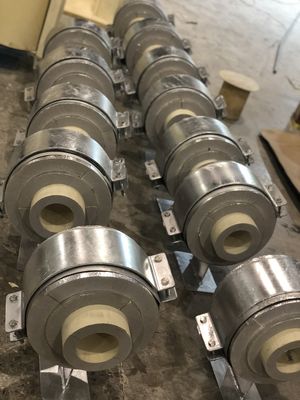

All components are assembled in the workshop. Finished products are wrapped in anti-ultraviolet polythene film and packed in wooden cases.
HDPIR Material
HDPIR is a foaming polymer combining properties of plastic, rubber, and cork. Composed of isocyanate, polyether, foaming agent, catalyst, and flame retardant, it forms a cellular structure with millions of tiny, uniform sealed cells. This structure provides low density, low thermal conductivity, and low water absorption, outperforming traditional timber.
Physical Properties
| Physical Property | Unit | Technical Indicator |
|---|---|---|
| Avg. Density | kg/m3 | 160 | 224 | 320 | 400 | 500 | 550 |
| Thermal Conductivity (20°C) | W/m.K | ≤0.032 | ≤0.040 | ≤0.050 | ≤0.058 | ≤0.075 | ≤0.085 |
| Compressive Strength (normal temperature) | MPa | ≥2.0 | ≥4.0 | ≥7.0 | ≥12.0 | ≥18.0 | ≥22.0 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Closed Cell Content | % | >95 |
| Linear Expansion Coefficient (-165-20°C) | 1/K | ≤65 x 10-6 |
| Application Temperature | °C | -306 |
Production Flow
