Low Thermal Conductivity PIR Polyisocyanurate Insulation Board Custom Thickness
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | PIR Polyisocyanurate Insulation Board | Feature | Easy Cutting |
|---|---|---|---|
| Cold Insulation Material | Polyisocyanurate PIR | PH Value | 5.5-7 |
| Service Temp. | -196～+120℃ | Application | Low Temperature Industries |
| Highlight | Custom Thickness Polyisocyanurate Insulation Board,Low Thermal Conductivity Pir Board,PIR Insulation Board Custom Thickness |
||
Product Description
Low Thermal Conductivity PIR Polyisocyanurate Insulation Board Custom Thickness
Why Choose Us?
- We're the largest manufacturer and leader of this industry in China
- Various styles for you to choose
- High and stable quality with competitive price
- Short lead time
- Sample order or smaller quantity will be appreciated
- Best service will be offered to our clients
Product Introduction
Polyisocyanurate (PIR) is a foaming material made by the polymerization of isocyanate and polyether. Its physical and fire resistance properties are superior to polyurethane. With excellent thermal conductivity and dimensional stability, it belongs to the category of organic hard thermal insulation materials.
Key Features
- Fire resistance rated as B1
- Operating temperature range: -196℃ to +120℃
- Excellent dimensional stability
- Customizable cutting in panels and pipes according to requirements
Technical Properties
| Item | Unit | Technical Data | Test Mode |
|---|---|---|---|
| Density | kg/m3 | ≥40 | ASTM D1622 / ISO 845 |
| Thermal Conductivity | W/(m*K) | ≤0.035 (+100℃) | ASTM C177 |
| ≤0.029 (+50℃) | |||
| ≤0.025 (+10℃) | |||
| ≤0.024 (0℃) | |||
| ≤0.023 (-50℃) | |||
| ≤0.022 (-100℃) | |||
| ≤0.017 (-150℃) | |||
| ≤0.016 (-170℃) | |||
| Compressive Strength | kPa | +23℃: ≥200 -165℃: ≥280 |
ASTM D 1621 |
| Tensile Strength | kPa | +23℃: ≥320 -165℃: ≥265 |
ASTM D 1623 |
| Flame Spread Index | ﹤25 | ASTM E84 | |
| Oxygen index | ≥30 | GB/T 2406.2 | |
| Water Absorption by Vol. | % | ≤2 | ASTM D2842 |
| Water Vapor Permeability | ng/(Pa*s*m) | ≤5.5 | ASTM E96 |
| Closed Cell Ratio | % | ≥95 | ASTM D6226 |
| Lineal Thermal Expansion Coefficient | m/(m*K) | ≤70×10-6 | ASTM D696 |
| PH Value | 5.5-7 | ASTM C871 | |
| Chloride Content | ppm | ≤60 | GB/T 11835 |
| Elastic Modulus | MPa | ≤16 | ASTM D1623 |
| Service Temp. | ℃ | -196～+120 |
Applications
As an ideal organic low-temperature heat insulation material with excellent thermal conductivity and dimensional stability, PIR is suitable for a wide temperature range. It is widely used in LNG, ethylene, cold storage, and other low-temperature industries.
Typical PIR Insulation System Structure

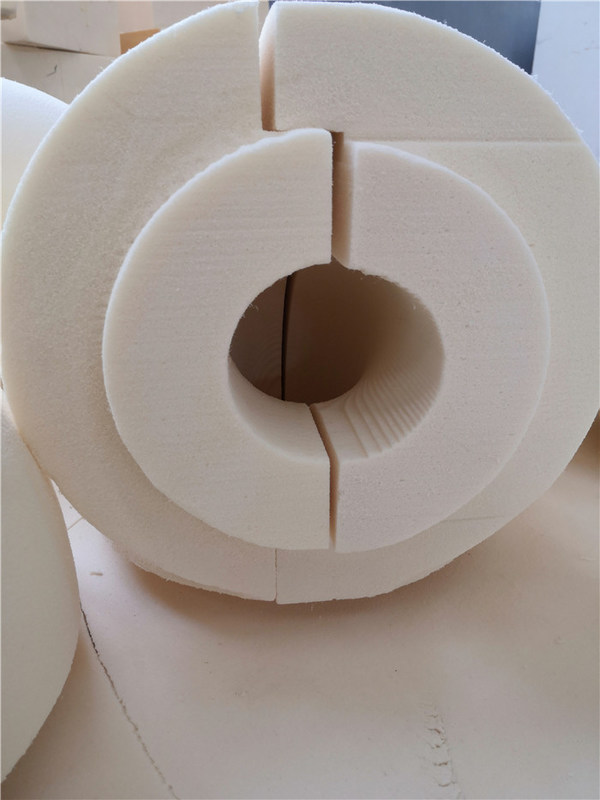

- PIR Shell: inner layer + middle layer (if necessary) + outer layer
- Secondary Vapor Barrier: PAP aluminum foil
- Main Vapor Barrier: mastic + fiberglass meshes + mastic
- Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
- Sealant: HS-10-02, Foster 95-50, etc
- Strapping Material: stainless steel tape, sub sensitive tape
Packing and Storage
- Store in a dry, lightproof, shady, and ventilated place, keep away from heat source and protect from sun exposure
- The inner package is packed in black polyethylene bags and the outer package is packed in cartons
Handling Cautions
- Handle PIR gently, avoid rolling, collision and heavy pressure during moving
- When applied to pipe and equipment insulation, PIR shall be fastened with glass fiber tape or steel band
- Cut with saw during application
