No Permeability Cellular Glass Board Insulation , Cellular Glass Thermal Insulation

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Cellular Glass Board Insulation

Feature:

Environmental Protection

Dimensional Stability:

≤0.3

Tensile Strength Vertical To The Plane:

≥0.15

Combustibility:

Application:

Petroleum Industry

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

foam glass thermal insulation

cellular glass board

Product Description

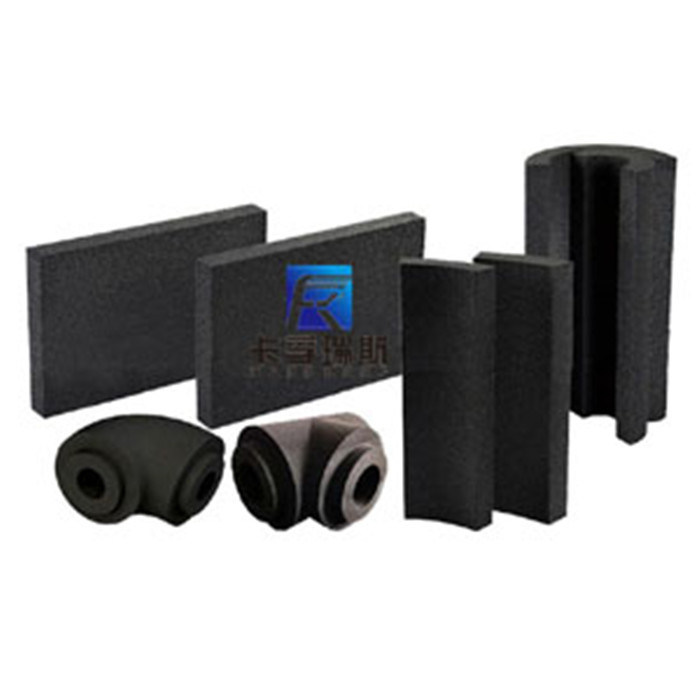

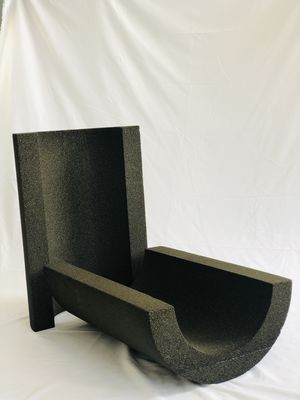

No Permeability Cellular Glass Board Insulation

Premium Cellular Glass Thermal Insulation

Cellular glass is an inorganic rigid insulation material that is non-toxic, environmentally friendly, and suitable for both cryogenic and high-temperature environments. It represents the optimal solution for comprehensive low-temperature thermal insulation applications.

This versatile material serves as both cold and thermal insulation, maintaining performance integrity from deep cold to thermal states without deterioration. Its exceptional durability makes it ideal for harsh environments including low temperature applications, underground engineering, and areas requiring fire prevention and earthquake resistance. Recognized as a "permanent thermal insulation material," cellular glass eliminates the need for replacement over time.

Key Features

Low density with minimal thermal conductivity and high compressive strength
Completely impermeable to water absorption and moisture
Excellent dimensional stability with minimal thermal expansion
Fireproof, non-combustible, and corrosion resistant
Resistant to mildew, pests, and microorganisms
Performs reliably in extreme temperature and humidity conditions
Easy to cut, shape, and install
Inorganic composition ensures no aging or performance degradation
Environmentally safe and recyclable

Performance Specifications

Item	Performance Index	Test Mode
Volume density Kg/m³	≤120 \| ≤140 \| ≤160 \| ≤180	JC/T 647
Conductivity W/(m*k)	≤0.042 \| ≤0.045 \| ≤0.058 \| ≤0.062	GB/T 10294
Compressive strength (MPa)	≥0.5 \| ≥0.6 \| ≥0.6 \| ≥0.7	GB/T 5486
Flexural strength (MPa)	≥0.3 \| ≥0.5 \| ≥0.5 \| ≥0.6
Tensile strength vertical to the plane(MPa)	≥0.15	JG149
Water Absorption by Vol. (v/v),%	≤0.5	JC/T 647
Dimensional stability %	≤0.3	GB/T 8811
Combustibility	A1	GB 8624

Technical Specifications by Grade

Property	Unit	Grade 800	Grade 1000	Grade 1200	Grade 1600
Ave. Density	kg/m³	120±8	130±8	140±8	160±10
Thermal Conductivity	W/(m*K)	0.043	0.044	0.046	0.048
Compressive Strength	MPa	0.8	1	1.2	1.6
Water Absorption by Vol.	%	≤0.5
Service Temp.	℃	-196～+450

Applications

Cellular glass insulation is extensively used in petroleum, chemical, and pharmaceutical industries, as well as in underground engineering, shipbuilding, and defense applications. Key uses include:

Cryogenic insulation systems in pharmaceutical processing
Hydrocarbon processing facilities
Low-temperature piping, equipment, and storage tanks
Cold storage buildings and refrigeration systems
Liquid oxygen and nitrogen storage systems
Building insulation for walls, roofs, and basements

Production Process
