Low Density Cellular Glass Board Insulation No Water Absorption Easy Cutting

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Cellular Glass Board Insulation

Feature:

Low Density

Dimensional Stability:

≤0.3

Tensile Strength Vertical To The Plane:

≥0.15

Combustibility:

Application:

Petroleum Industry

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

foam glass panels

cellular glass board

Product Description

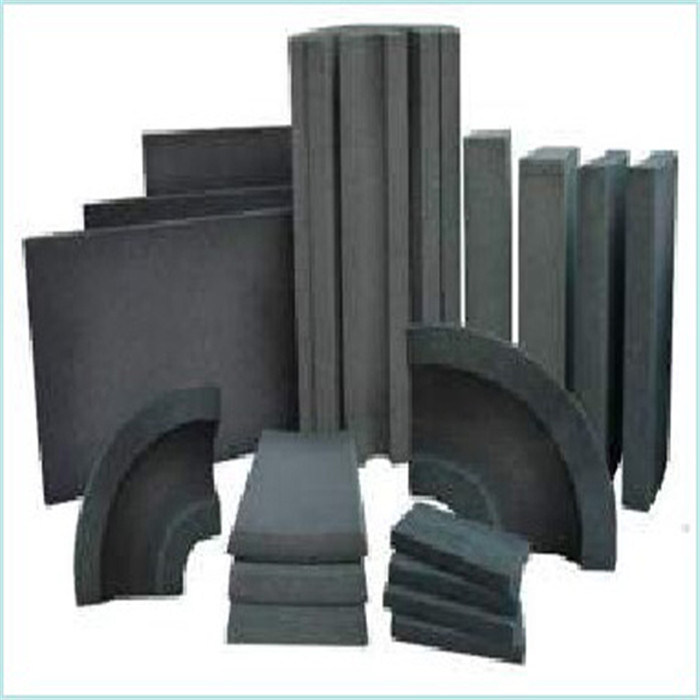

Low Density Cellular Glass Board Insulation

No Water Absorption | Easy Cutting

Cellular glass is an advanced inorganic thermal insulation material featuring equally closed cells. Composed of glass with added foaming agents, it's processed through high-temperature foaming and subsequent cooling, preserving the chemical stability of inorganic glass.

Key Features

Low density, low thermal conductivity and high compressive strength
No water absorption, moisture permeability or leakage
Excellent dimensional stability with minimal thermal expansion
Fireproof, non-combustible and corrosion resistant
Resistant to mildew, rodents and microorganisms
Suitable for extreme environments including high/low temperatures and humidity
Easy to cut, process and install
Inorganic composition ensures no aging or performance degradation
Environmentally friendly and recyclable

Performance Specifications

Item	Performance Index	Test Mode
Volume density (Kg/m3)	≤120 \| ≤140 \| ≤160 \| ≤180	JC/T 647
Conductivity (W/(m*k))	≤0.042 \| ≤0.045 \| ≤0.058 \| ≤0.062	GB/T 10294
Compressive strength (MPa)	≥0.5 \| ≥0.6 \| ≥0.6 \| ≥0.7	GB/T 5486
Water Absorption by Vol. (v/v),%	≤0.5	JC/T 647
Combustibility	A1	GB 8624

Technical Specifications by Grade

Property	Unit	Grade 800	Grade 1000	Grade 1200	Grade 1600
Ave. Density	kg/m3	120±8	130±8	140±8	160±10
Thermal Conductivity (Ave. Value)	W/(m*K)	0.043	0.044	0.046	0.048
Compressive Strength (Ave. Value)	MPa	0.8	1	1.2	1.6
Service Temp.	℃	-196～+450

Applications

Cellular glass is widely used in petroleum, chemical, and underground engineering industries, as well as shipbuilding and defense applications. It's ideal for cryogenic insulation systems, low-temperature piping, storage tanks, cold storage facilities, and building insulation for walls, roofs, and basements.

Production Process
