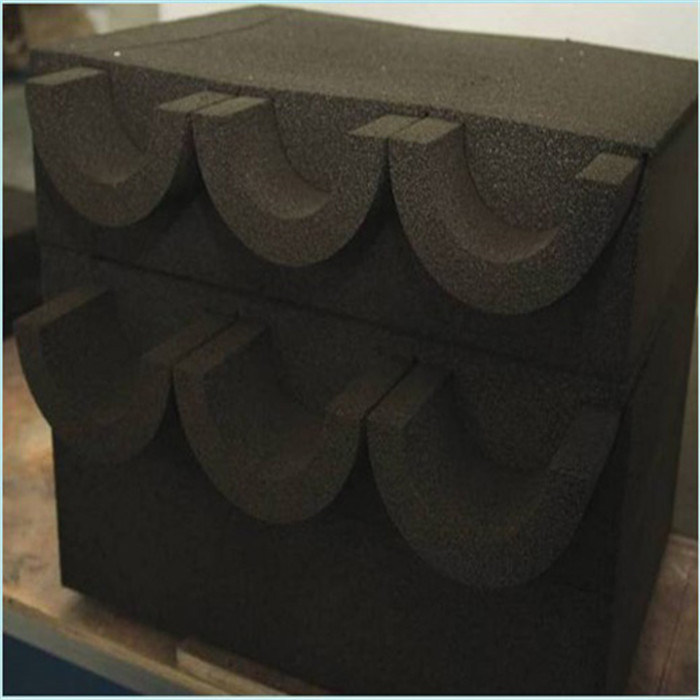

Low Density Cellular Glass Board Insulation , Foam Glass Insulation Board

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Cellular Glass Board Insulation

Feature:

Environmental Protection

Dimensional Stability:

≤0.3

Tensile Strength Vertical To The Plane:

≥0.15

Combustibility:

Application:

Petroleum Industry

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

foam glass panels

cellular glass board

Product Description

Low Density Cellular Glass Board Insulation, Foam Glass Insulation Board

Foamglass insulation is free of CFC's and HCFC's and has been formally recognized as an ecologically friendly, sustainable construction material.

Cellular glass serves as both cold and thermal insulation material, suitable for applications ranging from deep cold areas to thermal states. Its long-term durability prevents deterioration while providing fire and earthquake resistance. This material remains safe and reliable in harsh environments including low temperature, deep cold conditions, underground engineering, flammable/explosive areas, humid spaces, and chemically erosive settings. Known as a "permanent thermal insulation material that doesn't require replacement."

Key Features

Low density, low thermal conductivity and high compressive strength
No water absorption, moisture permeability or leakage
Small thermal expansion coefficient with excellent dimensional stability
Fireproof, non-combustible and corrosion resistant
Resistant to mildew, rodents, pests and microorganisms
Suitable for extreme environments including high temperature, deep cold, and constant humidity
Easy to cut, process and install
Inorganic composition with no aging or performance degradation
Recyclable, non-toxic, safe and environmentally friendly

Performance Specifications

Item	Performance Index	Test Mode
Volume density Kg/m3	≤120 \| ≤140 \| ≤160 \| ≤180	JC/T 647
Density range	＞100 ≤120 \| ＞120 ≤140 \| ＞140 ≤160 \| ＞160 ≤180
Conductivity W/(m*k)	≤0.042 \| ≤0.045 \| ≤0.058 \| ≤0.062	GB/T 10294
Compressive strength (MPa)	≥0.5 \| ≥0.6 \| ≥0.6 \| ≥0.7	GB/T 5486
Flexural strength (MPa)	≥0.3 \| ≥0.5 \| ≥0.5 \| ≥0.6
Tensile strength vertical to the plane(MPa)	≥0.15	JG149
Water Absorption by Vol. (v/v),%	≤0.5	JC/T 647
Dimensional stability %	≤0.3	GB/T 8811
Combustibility	A1	GB 8624
Radionuclide limit	internal exposure index(Ira) ≤1.0 \| external exposure index(Ir) ≤1.0	GB 6566

Property	Unit	Grade 800	Grade 1000	Grade 1200	Grade 1600
Ave. Density	kg/m3	120±8	130±8	140±8	160±10
Thermal Conductivity	W/(m*K)	0.043	0.044	0.046	0.048
Compressive Strength	MPa	0.8	1	1.2	1.6
Water Absorption by Vol.	%	≤0.5
Thermal Expansion Coefficient	1/℃	9×10-6
Service Temp.	℃	-196～+450

Applications

As an advanced thermal insulation material, cellular glass is widely used in petroleum industry, chemical plants, underground engineering, shipbuilding and defense works. Applications include cryogenic insulation systems in pharmaceuticals, hydrocarbon processing systems, low temperature piping, equipment and storage tanks, cold storage buildings, liquid oxygen/nitrogen storage tanks and pipelines, as well as exterior wall insulation, roofing, and basement applications.

Production Process
