Industrial Recyclable Cellular Glass Board Low Thermal Conductivity Foam Insulation
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Cellular Glass Board Insulation | Feature | Environmental Protection |
|---|---|---|---|
| Dimensional Stability | ≤0.3 | Tensile Strength Vertical To The Plane | ≥0.15 |
| Combustibility | A1 | Application | Petroleum Industry |
| Highlight | Low Thermal Conductivity Foam Insulation,Recyclable Cellular Glass Board |
||
Product Description
Industrial Recyclable Cellular Glass Board Low Thermal Conductivity Foam Insulation
Key Features
- Low density, low thermal conductivity and high compressive strength
- No water absorption, moisture permeability or leakage
- Small thermal expansion coefficient with excellent dimensional stability
- Fire protection, non-combustible and corrosion resistant
- Resistant to mildew, pests and microorganisms
- Suitable for harsh environments including high temperature, deep cold, and constant humidity
- Easy to cut, process and install
- Inorganic composition with no aging or performance degradation
- Recyclable, non-toxic, safe and environmentally friendly
Performance Specifications
| Item | Performance Index | Test Mode |
|---|---|---|
| Volume density Kg/m3 | ≤120 | ≤140 | ≤160 | ≤180 | JC/T 647 |
| Conductivity W/(m*k) | ≤0.042 | ≤0.045 | ≤0.058 | ≤0.062 | GB/T 10294 |
| Compressive strength (MPa) | ≥0.5 | ≥0.6 | ≥0.6 | ≥0.7 | GB/T 5486 |
| Flexural strength (MPa) | ≥0.3 | ≥0.5 | ≥0.5 | ≥0.6 | |
| Tensile strength vertical to the plane(MPa) | ≥0.15 | JG149 |
| Water Absorption by Vol. (v/v),% | ≤0.5 | JC/T 647 |
| Dimensional stability % | ≤0.3 | GB/T 8811 |
| Combustibility | A1 | GB 8624 |
Technical Properties
| Property | Unit | Grade 800 | Grade 1000 | Grade 1200 | Grade 1600 |
|---|---|---|---|---|---|
| Ave. Density | kg/m3 | 120±8 | 130±8 | 140±8 | 160±10 |
| Thermal Conductivity | W/(m*K) | 0.043 | 0.044 | 0.046 | 0.048 |
| Compressive Strength | MPa | 0.8 | 1 | 1.2 | 1.6 |
| Water Absorption by Vol. | % | ≤0.5 | |||
| Service Temp. | ℃ | -196～+450 | |||
Cellular glass is an inorganic rigid insulation material that is non-toxic, environmentally friendly, and suitable for both cryogenic and high-temperature environments. It offers permanent thermal insulation that doesn't require replacement, with excellent fire prevention and earthquake resistance properties.
Applications

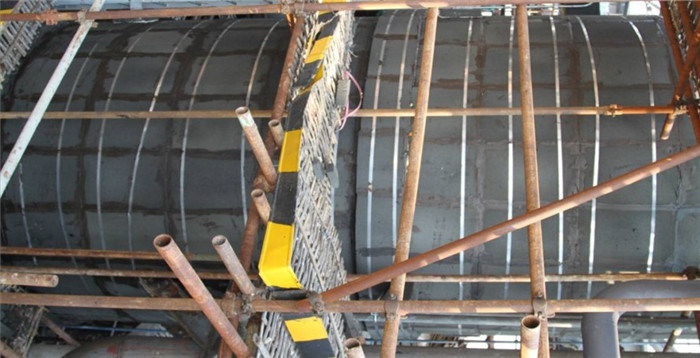

This advanced thermal insulation material is widely used in petroleum, chemical, and pharmaceutical industries, as well as in underground engineering, shipbuilding, and defense works. It's ideal for cryogenic systems, low-temperature piping, storage tanks, cold storage buildings, and exterior wall insulation.
