Non Combustion Foam Glass Panels For Underground Engineering / Chemical Industry

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Foam Glass Panels

Feature:

Non Combustion

Dimensional Stability:

≤0.3

Tensile Strength Vertical To The Plane:

≥0.15

Combustibility:

Application:

Petroleum Industry

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Chemical Industry Foam Glass Panels

Non Combustion Foam Glass Panels

Product Description

Non Combustion Foam Glass Panels For Underground Engineering / Chemical Industry

Foam glass insulation is not affected by temperature differentials and humidity. It will not swell, warp, shrink or otherwise distort. The integrity of the insulation remains intact even at the extremes of cryogenic service.

Cellular glass is not only a cold insulation but also a thermal insulation material, which can be used from deep cold area to thermal state. At the same time, after long-term use it will not be deteriorated and it plays an important role in fire prevention and earthquake prevention. It is not only safe and reliable, but also durable when used in harsh environments of low temperature, deep cold, underground engineering, inflammable, explosive, humid and chemical erosion. It is known as "permanent thermal insulation material that does not need to be replaced".

Features

Low density, low thermal conductivity and high compressive strength
No water absorption, moisture permeability and leakage
Small thermal expansion coefficient, good dimensional stability, no deformation and no cracking
Fire protection, non combustion and corrosion resistance
No mildew, no mouse sniffing, pest control and microorganism
Suitable for all kinds of harsh environments such as high temperature, deep cold, constant temperature and humidity
Easy to cut, process and construct
Inorganic products, no aging, no degradation of performance, service life synchronous with buildings
Recycling, innocuity, safety and environmental protection

Performance Index

Item	Performance Index	Test Mode
Volume density Kg/m3	≤120 \| ≤140 \| ≤160 \| ≤180	JC/T 647
Density range	＞100 ≤120 \| ＞120 ≤140 \| ＞140 ≤160 \| ＞160 ≤180
Conductivity W/(m*k)	≤0.042 \| ≤0.045 \| ≤0.058 \| ≤0.062	GB/T 10294
Compressive strength (MPa)	≥0.5 \| ≥0.6 \| ≥0.6 \| ≥0.7	GB/T 5486
Flexural strength (MPa)	≥0.3 \| ≥0.5 \| ≥0.5 \| ≥0.6
Tensile strength vertical to the plane(MPa)	≥0.15	JG149
Water Absorption by Vol. (v/v),%	≤0.5	JC/T 647
Dimensional stability %	≤0.3	GB/T 8811
Combustibility	A1	GB 8624
Radionuclide limit	internal exposure index(Ira) ≤1.0 \| external exposure index(Ir) ≤1.0	GB 6566

Property	Unit	Grade 800	Grade 1000	Grade 1200	Grade 1600
Ave. Density	kg/m3	120±8	130±8	140±8	160±10
Thermal Conductivity	W/(m*K)	0.043	0.044	0.046	0.048
Compressive Strength	MPa	0.8	1	1.2	1.6
Water Absorption by Vol.	%	≤0.5
Thermal Expansion Coefficient	1/℃	9×10-6
Service Temp.	℃	-196～+450

Property	Unit	Grade 500	Grade 700	Grade 1400	Grade 2400
Ave. Density	kg/m3	110±8	115±8	150±10	220±20
Thermal Conductivity	W/(m*K)	0.038	0.04	0.047	0.056
Compressive Strength	MPa	0.5	0.7	1.4	2.4
Water Absorption by Vol.	%	≤0.5
Thermal Expansion Coefficient	1/℃	9×10-6
Service Temp.	℃	-196～+450

Application

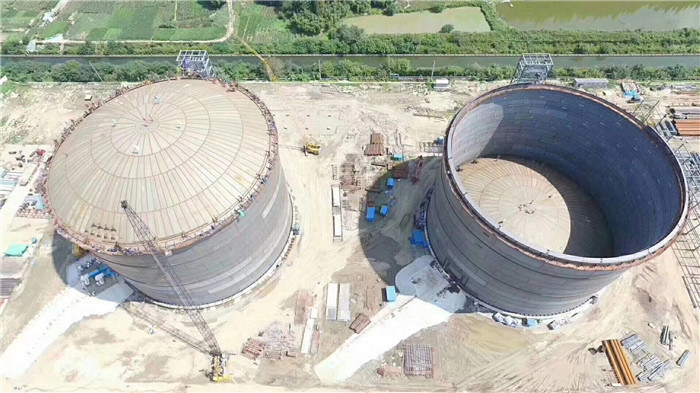

As an advanced thermal insulation material, cellular glass is widely used in petroleum industry, chemical industry, underground engineering, shipbuilding and defense works. It can be used in the cryogenic insulation system in pharmacy, the cryogenic system in hydrocarbon processing, the low temperature piping, equipment and storage tank, the cold storage and cold storage building, the steel liquid oxygen, liquid nitrogen storage tank and pipeline, and exterior wall insulation, exterior insulation, roofing, basement.

Flow of Production
