| Brand Name: | Kaff Rees |
| MOQ: | 20 Cubic Meters |
| Price: | Negotiable |
| Payment Terms: | EXW/FOB/CIF |
| Supply Ability: | According to products |
The following criteria shall be considered in the selection of low-temperature pre-insulated pipe supports:

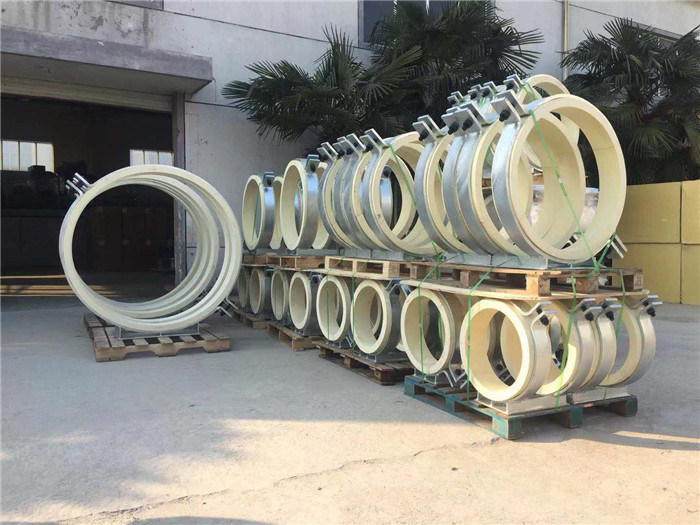

Insulated pipe support system is mainly used for the support of insulated pipes and equipment. The system can bear all kinds of loads brought by the piping system, and it is also a part of the cold insulation of the pipeline.
A complete insulated pipe support system consists of insulated pipe supports and cold insulation materials. The primary cold insulation material is high density polyisocyanurate (HDPIR).
The system may also include these auxiliary materials as required:
Primarily used for bearing and heat insulation of pipes and equipment in:
All parts are assembled in workshop. Finished products are wrapped in anti-ultraviolet polythene film and packed in wooden cases.
HDPIR is a foaming polymer combining features of plastic, rubber and cork. Composed of millions of tiny, uniform sealed cells, it offers low density, low thermal conductivity, and low water absorption with performance superior to timber.
| Physical Property | Unit | Technical Indicator |
|---|---|---|
| Avg. Density | kg/m3 | 160 | 224 | 320 | 400 | 500 | 550 |
| Thermal Conductivity (20°C) | W/m.K | ≤0.032 | ≤0.040 | ≤0.050 | ≤0.058 | ≤0.075 | ≤0.085 |
| Compressive Strength (normal temperature) | MPa | ≥2.0 | ≥4.0 | ≥7.0 | ≥12.0 | ≥18.0 | ≥22.0 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Closed Cell Content | % | >95 |
| Linear Expansion Coefficient (-165-20°C) | 1/K | ≤65 x 10-6 |
| Application Temperature | °C | -306 |
