Impact Resistant Building Insulation Materials Polyisocyanurate Foam Board Insulation

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Polyisocyanurate Foam Board Insulation

Feature:

Excellent Fire Resistance

Cold Insulation Material:

Polyisocyanurate PIR

PH Value:

5.5-7

Service Temp.:

-196～+120℃

Application:

Low Temperature Industries

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Impact Resistant Polyisocyanurate Foam Board

Impact Resistant Building Insulation Materials

Product Description

Impact Resistant Building Insulation Materials Polyisocyanurate Foam Board Insulation

Typical PIR Insulation System Structure

(1) PIR Shell: inner layer + middle layer (if necessary) + outer layer
(2) Secondary Vapor Barrier: PAP aluminum foil
(3) Main Vapor Barrier: mastic + fiberglass meshes + mastic
(4) Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
(5) Sealant: HS-10-02, Foster 95-50, etc
(6) Strapping Material: stainless steel tape, sub sensitive tape

Polyisocyanurate (PIR) is a foaming material made by the polymerization of isocyanate and polyether. Its physical and fire resistance properties are superior to polyurethane. With small thermal conductivity and high dimensional stability, it belongs to organic hard thermal insulation material.

Key Features

Fire resistance rated as B1
Operating temperature range: -196℃ to +120℃
Excellent dimensional stability
Customizable cutting in panels and pipes according to requirements

Technical Properties

Item	Unit	Technical Data	Test Mode
Density	kg/m³	≥40	ASTM D1622 / ISO 845
Thermal Conductivity	W/(m*K)	≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃)	ASTM C177
Compressive Strength	kPa	≥200 (+23℃) ≥280 (-165℃)	ASTM D 1621
Tensile Strength	kPa	≥320 (+23℃) ≥265 (-165℃)	ASTM D 1623
Flame Spread Index		﹤25	ASTM E84
Oxygen index		≥30	GB/T 2406.2
Water Absorption by Vol.	%	≤2	ASTM D2842
Water Vapor Permeability	ng/(Pasm)	≤5.5	ASTM E96
Closed Cell Ratio	%	≥95	ASTM D6226
Lineal Thermal Expansion Coefficient	m/(m*K)	≤70×10⁻⁶	ASTM D696
PH Value		5.5-7	ASTM C871
Chloride Content	ppm	≤60	GB/T 11835
Elastic Modulus	MPa	≤16	ASTM D1623
Service Temp.	℃	-196～+120

Applications

As an ideal organic low-temperature heat insulation material with small thermal conductivity and high dimensional stability, PIR foam board is suitable for a wide temperature range. It is widely used in LNG, ethylene, cold storage and other low-temperature industries.

Packing and Storage

Store in a dry, lightproof, shady, and ventilated place
Keep away from heat sources and protect from sun exposure
Inner package: black polyethylene bags
Outer package: cartons

Handling Cautions

Handle PIR gently, avoid rolling, collision and heavy pressure during moving
When applied to pipe and equipment insulation, fasten with glass fiber tape or steel band
Cut with saw during application

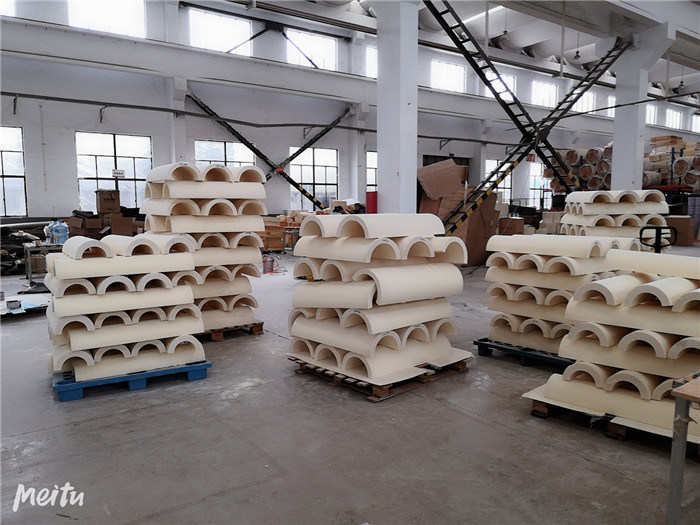

Production Flow
