Inorganic Rigid Insulation Materials Cellular Glass Board For High Temperature
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Cellular Glass Board Insulation | Feature | Environmental Protection |
|---|---|---|---|
| Dimensional Stability | ≤0.3 | Tensile Strength Vertical To The Plane | ≥0.15 |
| Combustibility | A1 | Application | Petroleum Industry |
| Highlight | Inorganic Rigid cellular glass board,Insulation Materials Cellular Glass Board |
||
Product Description

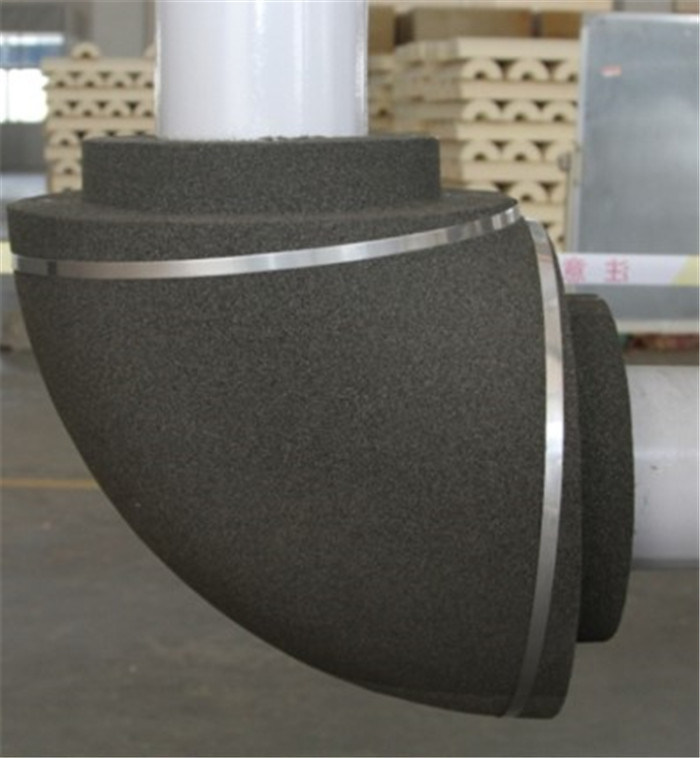

Inorganic Rigid Insulation Materials Cellular Glass Board For High Temperature
Applications
- Cryogenic Systems
- Low Temperature Pipe, Equipment, Tanks And Vessels
- Medium And High Temperature Pipes And Equipment
- Hot Oil And Hot Asphalt Storage Tanks
- Heat Transfer Fluid Systems
- Hydrocarbon Processing Systems
- Chemical Processing Systems
- Above Ground And Underground Steam And Chilled Water Piping
- Commercial Piping And Ductwork
Product Introduction
Cellular glass is an inorganic rigid insulation material that is non-toxic, environmentally friendly, and suitable for both cryogenic and high-temperature environments. It represents the most comprehensive low-temperature thermal insulation solution available.
This versatile material serves as both cold insulation and thermal insulation, with applications ranging from deep cold areas to thermal states. Its long-term durability prevents deterioration while providing excellent fire and earthquake resistance. Cellular glass maintains reliability in harsh environments including low temperature, deep cold conditions, underground engineering, and chemically corrosive settings, earning its reputation as a "permanent thermal insulation material that never needs replacement."
Key Features
- Low density with low thermal conductivity and high compressive strength
- Completely waterproof with no moisture permeability or leakage
- Minimal thermal expansion ensures dimensional stability without deformation or cracking
- Fireproof, non-combustible, and corrosion resistant
- Resistant to mildew, pests, and microorganisms
- Performs reliably in extreme temperature and humidity conditions
- Easy to cut, process, and install
- Inorganic composition prevents aging or performance degradation
- Environmentally friendly, recyclable, and non-toxic
Performance Specifications
| Item | Performance Index | Test Mode |
|---|---|---|
| Volume density Kg/m3 | ≤120 | ≤140 | ≤160 | ≤180 | JC/T 647 |
| Density range | ＞100 ≤120 | ＞120 ≤140 | ＞140 ≤160 | ＞160 ≤180 | |
| Conductivity W/(m*k) | ≤0.042 | ≤0.045 | ≤0.058 | ≤0.062 | GB/T 10294 |
| Compressive strength (MPa) | ≥0.5 | ≥0.6 | ≥0.6 | ≥0.7 | GB/T 5486 |
| Flexural strength (MPa) | ≥0.3 | ≥0.5 | ≥0.5 | ≥0.6 | |
| Tensile strength vertical to the plane(MPa) | ≥0.15 | JG149 |
| Water Absorption by Vol. (v/v),% | ≤0.5 | JC/T 647 |
| Dimensional stability % | ≤0.3 | GB/T 8811 |
| Combustibility | A1 | GB 8624 |
| Radionuclide limit | internal exposure index(Ira) ≤1.0 | external exposure index(Ir) ≤1.0 | GB 6566 |
| Property | Unit | Grade 800 | Grade 1000 | Grade 1200 | Grade 1600 |
|---|---|---|---|---|---|
| Ave. Density | kg/m3 | 120±8 | 130±8 | 140±8 | 160±10 |
| Thermal Conductivity | W/(m*K) | 0.043 | 0.044 | 0.046 | 0.048 |
| Compressive Strength | MPa | 0.8 | 1 | 1.2 | 1.6 |
| Water Absorption by Vol. | % | ≤0.5 | |||
| Thermal Expansion Coefficient | 1/℃ | 9×10-6 | |||
| Service Temp. | ℃ | -196～+450 | |||
Production Flow
