Petrochemical Plant Pipe Insulation Shields 25mm - 250mm Insulation Thicknesses

• The load bearing insulating materials used in the pre-insulated pipe support shall be the same material that was used to rate the support.
• At the request of the end user or the purchaser, we will make available compressive strength and thermal conductivity testing results of the high-density polyurethane.
• A description of the quantity of load that can be applied to the support shall be provided for evaluation upon request.
• Load bearing element capacity shall be demonstrated at the system design temperature and load.
• The pre-insulated pipe support assembly shall exert enough clamping force to assure that the support will move axially with the pipe and will not slip when under design conditions.

1. Sliding Pipe support system
2. Guide pipe support system (including guide support for vertical pipe)
3. Limit / fixing pipe support system
4. Bearer supporting bracket system

1. Pipe support base
2. Rubber plate
3. Metal protective layer
4. Vapor barrier
5. HDPIR inner layer
6. HDPIR outer layer
7. Metal pipe clamp
8. Bolts
9. Disc spring
10. Nut

Kaff Rees offers a complete product range of insulated cryogenic pipe supports for all kinds of low temperature pipe systems. The insulated pipe supports are designed to be clamped mechanically to the piping by means of disc spring bolting. The pipe support cradle, which houses the HD-PIR insulation, is made of steel and is hot-dip galvanised as standard.

Cryogenic pipe supports by Kaff Rees are standardised and designed according to recognised international technical regulations and standards. They comprise a pipe diameter range from OD 21.3 mm / 0.84 in to OD 965.20 mm / 38 in with insulation thicknesses from 25 mm / 0.98 in to 250 mm / 9.84 in. The supports are made from materials suitable for the specified loads and temperatures (temperature of medium to -196 °C).

HDPIR is a kind of foaming polymer, with the features of plastic, rubber and cork. The raw materials are isocyanate, polyether, foaming agent, catalyst, flame retardant, etc. After high speed stirring, materials react and foam to cellular structure product, composed of millions of tiny and uniform sealed cells. It provide benefits of low density, low thermal conductivity, low water absorption. The performance is better than timber.

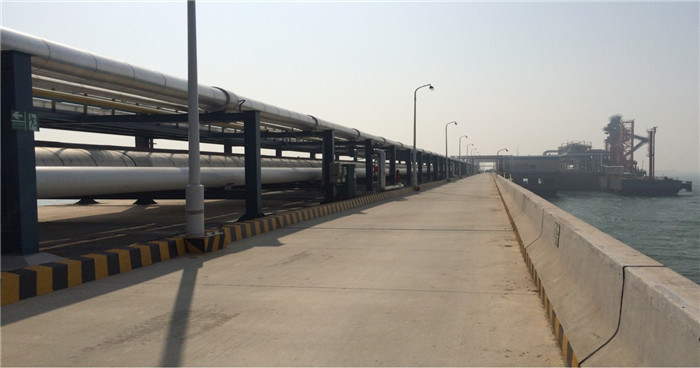

These products are normally used in industrial processes for the production, transport and distribution of liquefied gases. These can be propane and butane (LPG), methane (LNG), ethylene, nitrogen, or ammonia.

All parts will be fitted together in workshop. Finished product shall be wrapped by anti-ultraviolet polythene film, then packed in wooden case.

• Detach the product, install parts in positions, and fit them together again.
• Install according to Kaff Rees' instruction.
