Low Density Foam Glass Insulation Cellular Glass Insulation For Petroleum Projects
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Foam Glass Thermal Insulation | Feature | Low Density |
|---|---|---|---|
| Dimensional Stability | ≤0.3 | Tensile Strength Vertical To The Plane | ≥0.15 |
| Combustibility | A1 | Application | Petroleum Industry |
| Highlight | Low Density Foam Glass Insulation,Cellular Glass For Petroleum Projects |
||
Product Description
Low Density Foam Glass Insulation Cellular Glass Insulation For Petroleum Projects
Cellular glass Block Insulation is an inorganic rigid insulation material that is non-toxic, environmentally friendly, and suitable for both cryogenic and high-temperature environments. It offers superior performance as a comprehensive low-temperature thermal insulation solution.
Key Features
- Low density, low thermal conductivity, and high compressive strength
- Waterproof with no moisture permeability or leakage
- Excellent dimensional stability with minimal thermal expansion
- Fireproof, non-combustible, and corrosion resistant
- Resistant to mildew, pests, and microorganisms
- Performs well in extreme environments including high temperature, deep cold, and constant humidity
- Easy to cut, process, and install
- Inorganic composition ensures no aging or performance degradation
- 100% recyclable, safe, and environmentally friendly
Performance Specifications
| Item | Performance Index | Test Mode |
|---|---|---|
| Volume density Kg/m3 | ≤120 | ≤140 | ≤160 | ≤180 | JC/T 647 |
| Density range | ＞100 ≤120 | ＞120 ≤140 | ＞140 ≤160 | ＞160 ≤180 | |
| Conductivity W/(m*k) | ≤0.042 | ≤0.045 | ≤0.058 | ≤0.062 | GB/T 10294 |
| Compressive strength (MPa) | ≥0.5 | ≥0.6 | ≥0.6 | ≥0.7 | GB/T 5486 |
| Flexural strength (MPa) | ≥0.3 | ≥0.5 | ≥0.5 | ≥0.6 | |
| Tensile strength vertical to the plane(MPa) | ≥0.15 | JG149 |
| Water Absorption by Vol. (v/v),% | ≤0.5 | JC/T 647 |
| Dimensional stability % | ≤0.3 | GB/T 8811 |
| Combustibility | A1 | GB 8624 |
| Radionuclide limit | internal exposure index(Ira) ≤1.0 | external exposure index(Ir) ≤1.0 | GB 6566 |
| Property | Unit | Grade 800 | Grade 1000 | Grade 1200 | Grade 1600 |
|---|---|---|---|---|---|
| Ave. Density | kg/m3 | 120±8 | 130±8 | 140±8 | 160±10 |
| Thermal Conductivity | W/(m*K) | 0.043 | 0.044 | 0.046 | 0.048 |
| Compressive Strength | MPa | 0.8 | 1 | 1.2 | 1.6 |
| Water Absorption by Vol. | % | ≤0.5 | |||
| Thermal Expansion Coefficient | 1/℃ | 9×10-6 | |||
| Service Temp. | ℃ | -196～+450 | |||
Applications
Cellular glass insulation is widely used in petroleum, chemical, and underground engineering applications, as well as shipbuilding and defense projects. It is ideal for cryogenic insulation systems in pharmaceutical processing, hydrocarbon processing, low-temperature piping, equipment and storage tanks, cold storage facilities, liquid oxygen/nitrogen storage, and building insulation for walls, roofs, and basements.

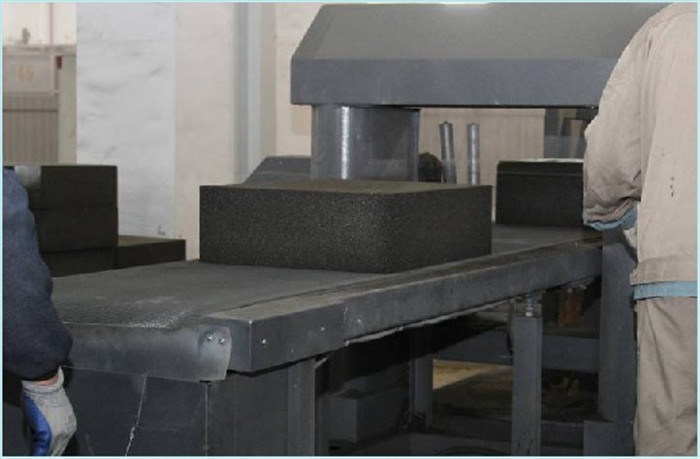

Production Flow
